Technical Parameters
| Tire Size | 11R22.5 | 11R24.5 | 295/75R22.5 | 295/75R22.5 |
| PR | 16(H) | 16(H) | 14(G) | 16(H) |
| Load Index | 148 / 145M | 149/146M | 144/141M | 146/143M |
| Overall Diameter | 1065mm / 41.9inch | 1116mm / 43.9inch | 1014mm / 39.9inch | 1014mm / 39.9inch |
| Section Width | 279mm / 11.0in | 279mm / 11.0in | 298mm / 11.7in | 298mm / 11.7in |
| Tread Depth | 10.3mm / 13.0(32nd) | 10.3mm / 13.0(32nd) | 10.3mm / 13.0(32nd) | 10.3mm / 13.0(32nd) |
| Rim | 8.25 | 8.25 | 9.00 | 9.00 |
| Max Load | ||||
| Single | 3150kg / 6940lbs | 3250kg / 7160lbs | 2800kg / 6170lbs | 3000kg / 6610lbs |
| Dual | 2900kg / 6395lbs | 3000kg / 6610lbs | 2575kg / 5675lbs | 2725kg / 6005lbs |
| Pressure | 850kpa / 123psi | 825kpa / 120psi | 760kpa / 110psi | 825kpa / 120psi |

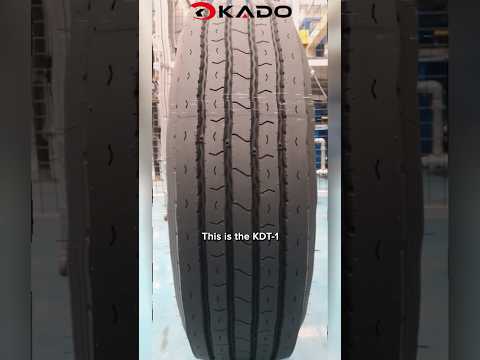

Product Video
Product Notes
- Wider tread design with four-layer belt structure.
- Multi-sipe tread layout supports traction and heat dissipation in wet conditions.
- Tread grooves help improve self-cleaning performance.
- Optimized tread design helps reduce rolling resistance and support fuel economy.
- Wide shoulder design increases wear resistance for trailer applications.
Application
KDT-1 is a trailer tire for commercial truck applications where rolling resistance, shoulder wear, heat control, and consistent trailer-axle performance are important. The model is suitable for fleets, truck tire dealers, repair shops, and wholesale buyers looking for common commercial trailer tire sizes.
| Recommended Position | Trailer axle |
| Buyer Type | Fleet operators, truck tire dealers, repair shops, wholesale buyers |
| Commercial Use | Semi trailers, fleet replacement, dealer inventory, trailer tire programs |
| Main Strength | Rolling resistance, shoulder wear resistance, wet-condition traction support, self-cleaning tread design |
Construction and Performance
Wider tread and four-layer belts: built to support commercial trailer-axle loads and stable road contact.
Multi-sipe layout: supports traction and heat dissipation in wet operating conditions.
Self-cleaning grooves: tread grooves help clear debris from the contact area during commercial use.
Low rolling resistance focus: optimized tread design is intended to support fuel economy on trailer applications.
Wide shoulder design: helps improve wear resistance, an important factor for trailer tires exposed to scrub and uneven loading.
Note: Always confirm tire size, PR, load index, rim fitment, maximum load, and pressure requirements before ordering or installing commercial truck tires.
