All Positions Tires KDA-6
Size:
215/75R17.5*
Size:
225/70R19.5*
Size:
235/75R17.5*
Size:
245/70R17.5*
Size:
245/75R19.5*
Size:
255/70R22.5
Warranty:
7 Years
Technical Parameters
| Tire Size | 215/75R17.5* | 225/70R19.5* | 235/75R17.5* | 245/70R17.5* | 245/75R19.5* | 255/70R22.5 |
| PR | 16(H) | 16(H) | 18(J) | 18(J) | 18(J) | 16(H) |
| Load Index | 135/133L | 128/126M | 143/141L | 143/141K | 141/140M | 140/137M |
| Overall Diameter | 767mm / 30.2inch | 811mm / 31.9inch | 797mm / 31.4inch | 789mm / 31.1inch | 839mm / 33inch | 930mm / 36.6inch |
| Section Width | 211mm / 8.3in | 226mm / 8.9in | 233mm / 9.2in | 248mm / 9.8in | 248mm / 9.8in | 255mm / 10.0in |
| Tread Depth | 12.5mm / 15.7(32nd) | 14mm / 17.6(32nd) | 12.5mm / 15.7(32nd) | 12.5mm / 15.7(32nd) | 14mm / 17.6(32nd) | 14mm / 17.6(32nd) |
| Rim | 6.00 | 6.75 | 6.75 | 7.50 | 7.50 | 7.50 |
| Max Load | ||||||
| Single | 2180kg / 4805lbs | 1800kg / 3965lbs | 2725kg / 6005lbs | 2725kg / 6005lbs | 2575kg / 5675lbs | 2500kg / 5510lbs |
| Dual | 2060kg / 4540lbs | 1700kg / 3745lbs | 2575kg / 5675lbs | 2575kg / 5675lbs | 2500kg / 5510lbs | 2300kg / 5070lbs |
| Pressure | 850kpa / 123psi | 760kpa / 110psi | 875kpa / 127psi | 900kpa / 130psi | 825kpa / 120psi | 825kpa / 120psi |

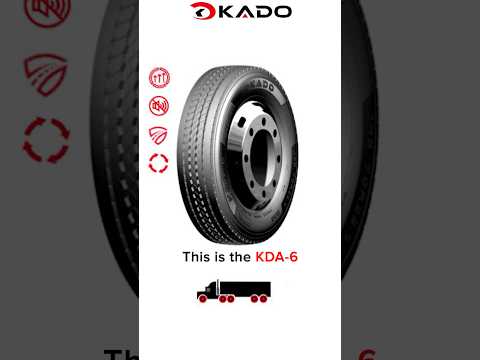

Product Video
Product Notes
- Wider tread design with four-layer belt structure.
- Small tread sipes help improve performance in wet conditions.
- Solid shoulder ribs support resistance to maneuvering scrub.
- Cross-ladder pattern design supports stone rejection performance.
- Four-groove design provides traction support and stable driving behavior.
Application
KDA-6 is an all-position commercial truck tire for applications where wet-condition performance, shoulder durability, stone rejection, and stable handling are important. The model is suitable for fleets, truck tire dealers, repair shops, and wholesale buyers that need multiple 17.5, 19.5, and 22.5 commercial tire sizes.
| Recommended Position | All-position commercial truck use |
| Buyer Type | Fleet operators, truck tire dealers, repair shops, wholesale buyers |
| Commercial Use | Commercial trucks, fleet replacement, dealer inventory, all-position tire programs |
| Main Strength | Wet-condition performance, maneuvering scrub resistance, stone rejection, traction support, driving stability |
Construction and Performance
Wider tread and four-layer belts: built to support commercial truck loads and stable road contact.
Small tread sipes: help improve performance in wet operating conditions.
Solid shoulder ribs: support resistance to maneuvering scrub during commercial use.
Cross-ladder pattern: designed to support stone rejection performance.
Four-groove design: provides traction support and stable driving behavior.
Note: Always confirm tire size, PR, load index, rim fitment, maximum load, and pressure requirements before ordering or installing commercial truck tires.
